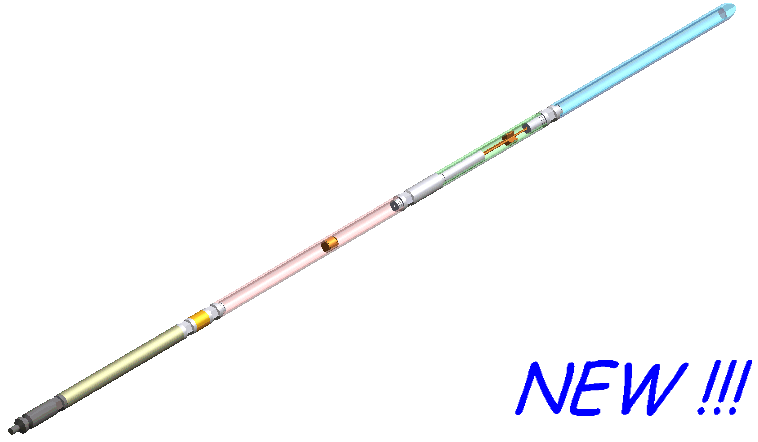

Monophasic bottom hole sampler

Volume: 600 cc
Work pressure: 1000 bar
Work temperature: 0° to 200°C
Lenght: 2.8 meter

1. Hanging head 2. Clock 3. Opening mecanism & filter 4. Sample chamber 5. Closing mecanism 6. Compensation pressure chamber 7. pressure amplifier 8. Dead liquid tank receiver & Ogive
