The obligation as fast as possible to obtain data on a field for its exploitation led us to realize in collaboration with and at the request of TOTAL FINA ELF a transportable unit for on site PVT analysis .

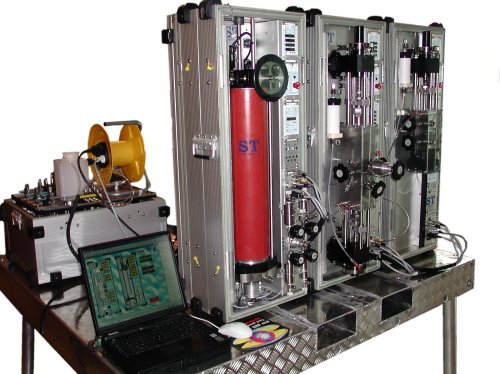

This unit made up of various independent modules (PVT cells, viscometer, gasometer and GC) makes it possible to carry out all physical measurements necessary to the validation of samples (taken on MDT, RCI or simple sampler) and PVT analysis on site and in laboratory. These fast measurements support the decisions necessary to the conduit of a good exploitation.
|

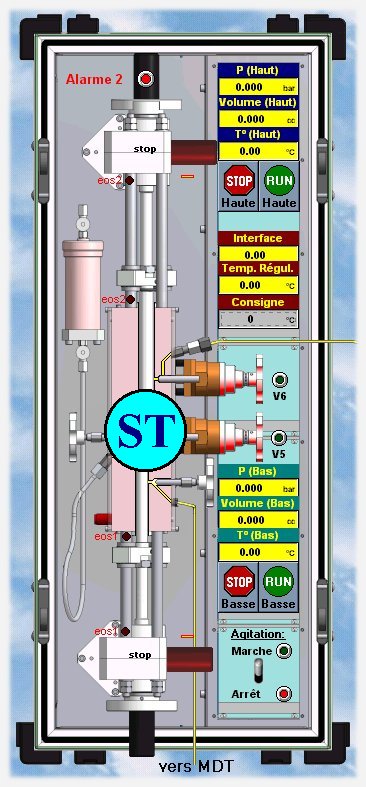

 Working Pressure: 500 bar (800 bar on request)
Working Temperature: ambient to 150°C
Volume:
|
|
|

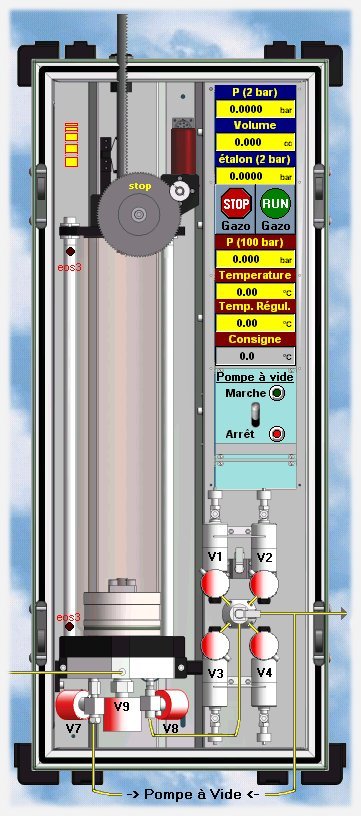

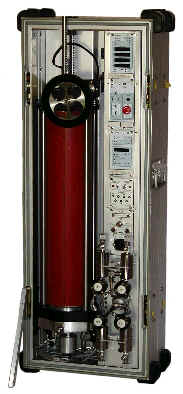

Working Pressure: vacuum to 2 bar
Working Temperature: ambient to 50°C
Volume: 5 liters
|
|
|

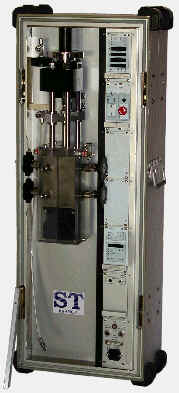

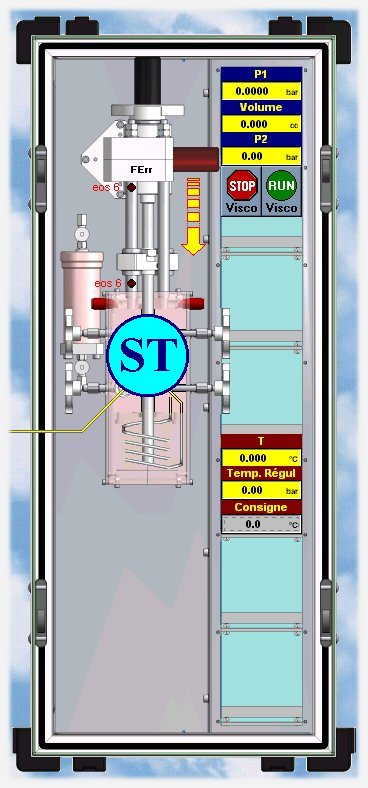

Working Pressure: 500 bar (800 bar on request)
Range h
: 0.1 cp to 200 cp
Working Temperature: ambient to 150°C
Volume: 12 cc
|
|
Determination on CME and flash studies of:
|
| Determination
on flash study of G.O.R.
|
| Determination
of viscosity.
|
 |
Utilities
|
 |

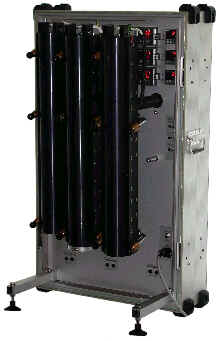

MDT and RCI utilities
|
Ø Working pressure: 500 bar (PVT Cells and Viscometer)
(800 bar on request)Ø Full Weight: < 400 kg ( 3 Units, MDT and RCI utilities, Utilities, Power Supply)
Ø Full Size: 1696 x 1575 x 1020 mm ( Storage and carriage)
If you are interested by this equipment or for any questions about it, please send an e-mail to J. Sanchez (st@stfrance.com)
Copyright © 2001 Sanchez Technologies. All
rights reserved.
The informations contained in this document will be modified
without notice.
The other products or companies which are mentioned in this
document are marks or trade marks their respective owners.
30 cc (bottom cell)
Stirring on bottom cell
